LIN - LAR - LOX TanksLOX Storage

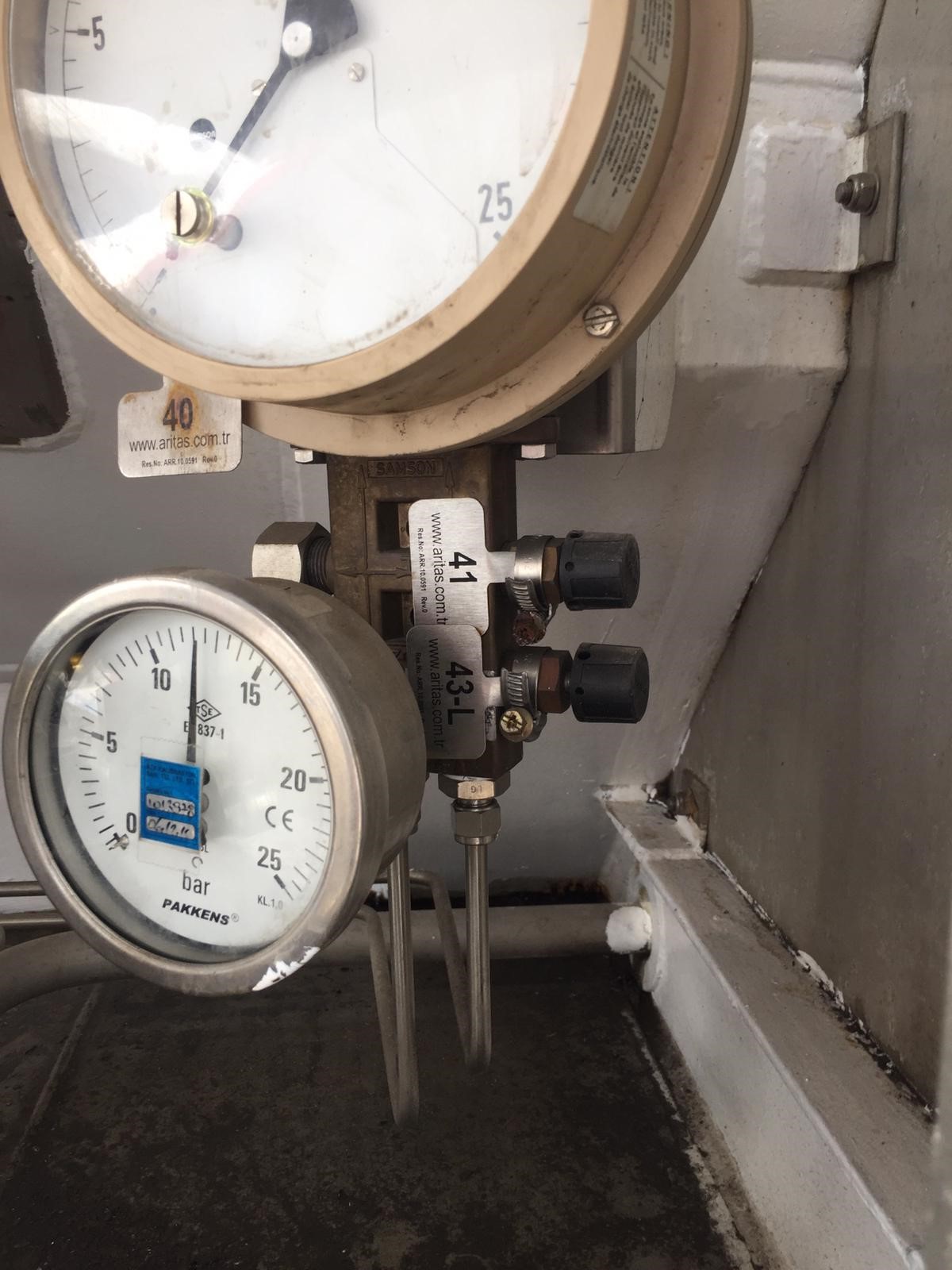

Pressure and Level

As Green Automation Energy JSC, LIN, LAR. LOX tanks, all of their equipment, accessories, spare parts and services are supplied under suitable conditions and presented to customer in order to meet their needs.

STANDARDS TO FOLLOW

  • +

    2014/68/EU DIRECTIVE 2014/68/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 May 2014 on the harmonization of the laws of the Member States relating to the making available on the market of pressure equipment

  • +

    2014/34/EU DIRECTIVE 2014/34/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States relating to equipment and protective systems intended for use in potentially explosive atmospheres

  • +

    2014/34/EU DIRECTIVE 2014/34/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States relating to equipment and protective systems intended for use in potentially explosive atmospheres

  • +

    ANSI/IEC 60529-2004 Degrees of Protection Provided by Enclosures (IP Code)

  • +

    ASTM A312/A312M-17 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

  • +

    BS ISO 16924:2016 Natural Gas Fueling Stations

  • +

    EN 10028-7 2016 Flat Products Made of Steels for Pressure Purposes, Part 7: Stainless Steels

  • +

    EN 10204:2004-3.2 Metallic Products: Types of Inspection Documents

  • +

    EN 12300 Cryogenic vessels — Cleanliness for cryogenic service

  • +

    EN 13275 Cryogenic vessels – Pumps for cryogenic service

  • +

    EN 13458 Cryogenic Vessels Static Vacuum Insulated Vessels

  • +

    EN 13480-5 2017 Metallic Industrial Piping, Part 5: Inspection and Testing

  • +

    EN 60034-1 Rotating Electrical Machines – Part 1: Rating and Performance

  • +

    EN ISO 12944 Paints and varnishes - Corrosion protection of steel structures by protective paint systems and its subdivisions

  • +

    EN ISO 21009-2 Cryogenic vessels — Static vacuum insulated vessels Part 2: Operational requirements

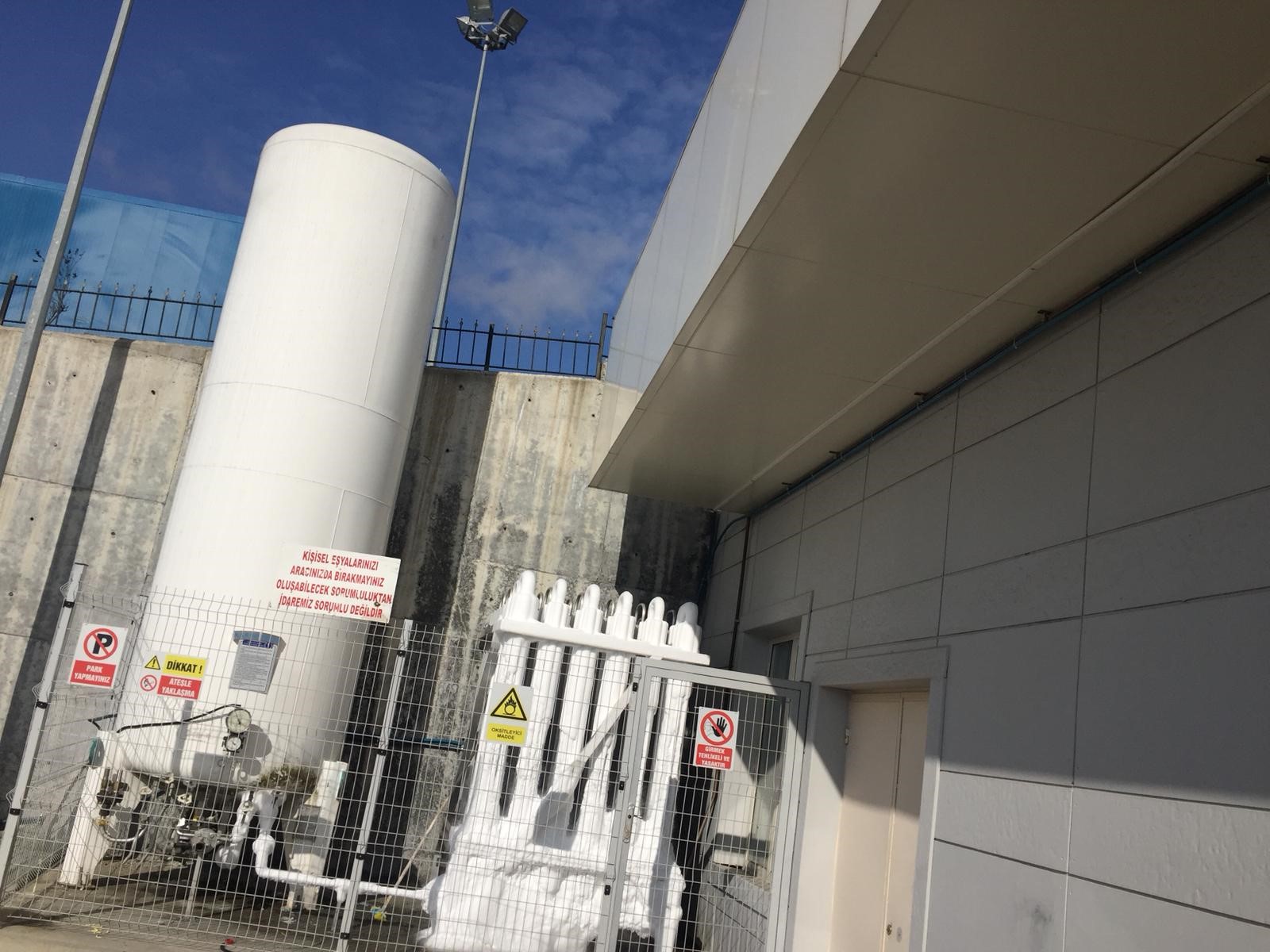

LOX STORAGE Tank

  • +

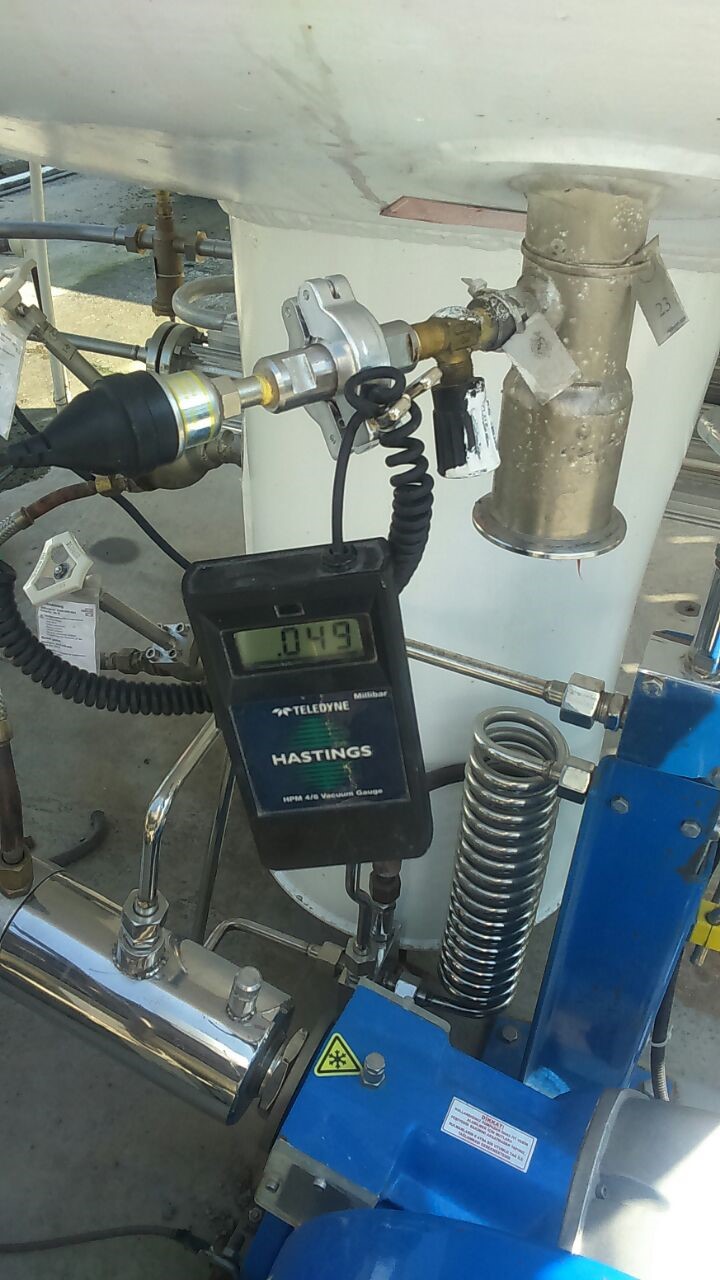

    Cryogenic Tanks consist of two jackets. The inner tank is made of sheets that contain nickel and verified by charpy impact test at design temperature and is the tank where LOX is stored. The outer tank is for isolation. Heat transfer is minimized by means of various insulating materials and vacuum between the two tanks. The rapid expansion of Cryogenic Liquids with the heat they receive from the environment necessitates highest security measures.


LOX Storage Tank Related Parameters

  • +

    LOX storage pressure (bar) Analog - Digital

  • +

    LOX storage level (l)) Analog - Digital


ACCESSORIES

  • +

    Bottom Filling Line

  • +

    Top Filling Line

  • +

    Safety Valves Line

  • +

    Evaporator Filling Line

  • +

    Evaporator Return Line

  • +

    Upper Level Line

  • +

    95% Overflow Line

  • +

    Ekomizer Line

  • +

    Top Filling Line
